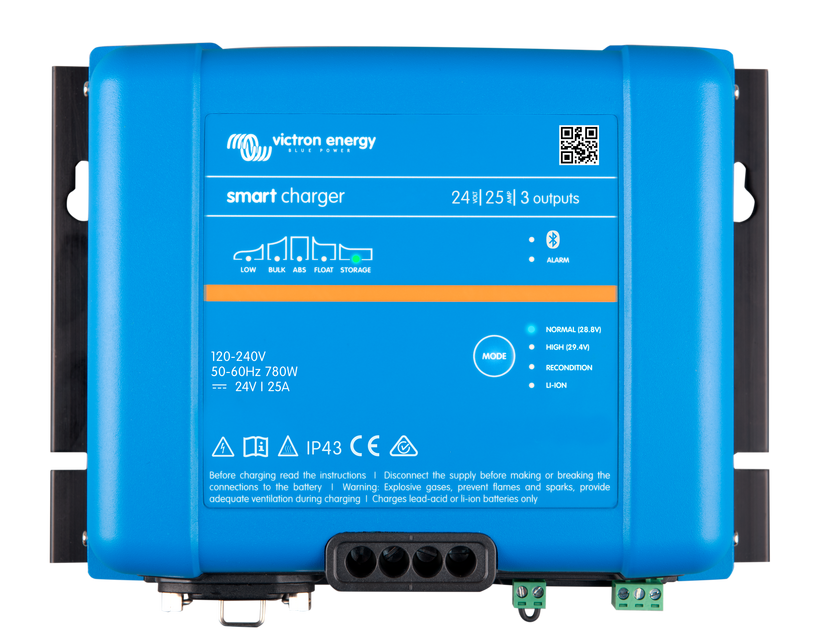

Victron Phoenix Smart Charger IP43 24/25 (1+1) 120-240V PSC242551095

Victron Energy Phoenix Smart IP43 Charger 24/25 (1+1) 120-240V PSC242551095 24v

Victron Phoenix Smart Charger 24/25 (1+1) was designed specifically for the boat owner. Advanced technology brings this Victron Phoenix Smart IP43 Charger to the front. With its built-in, adaptive 5-step charging, it can deliver the power. Either 30a or 50a of charge to each of up to three battery banks.

Alternatively, the Victron Energy Phoenix 1+1 model provides 3a to your starter battery, while the remainder of the power goes to the ‘house’ bank.

In addition to all of these features, the Victron IP43 Charger 24v models are available with 16a or 25a charge options.

In addition to all of this, the Victron Charger has Bluetooth capability. This means you can monitor the charger and set alarms directly from your phone. Advanced and adaptive, intelligent, and dynamic charging features are also available.

Specification of the Victron IP43 24/25

Datasheets and Manuals

Victron IP45 Datasheet

Victron IP45 User Manual

Bluetooth Smart Built-in

Notably, the Phoenix Smart IP43 Charger comes with built-in Bluetooth. This allows you to set up, monitor, update, and sync the charger wirelessly. Simply use the VictronConnect app for full control.

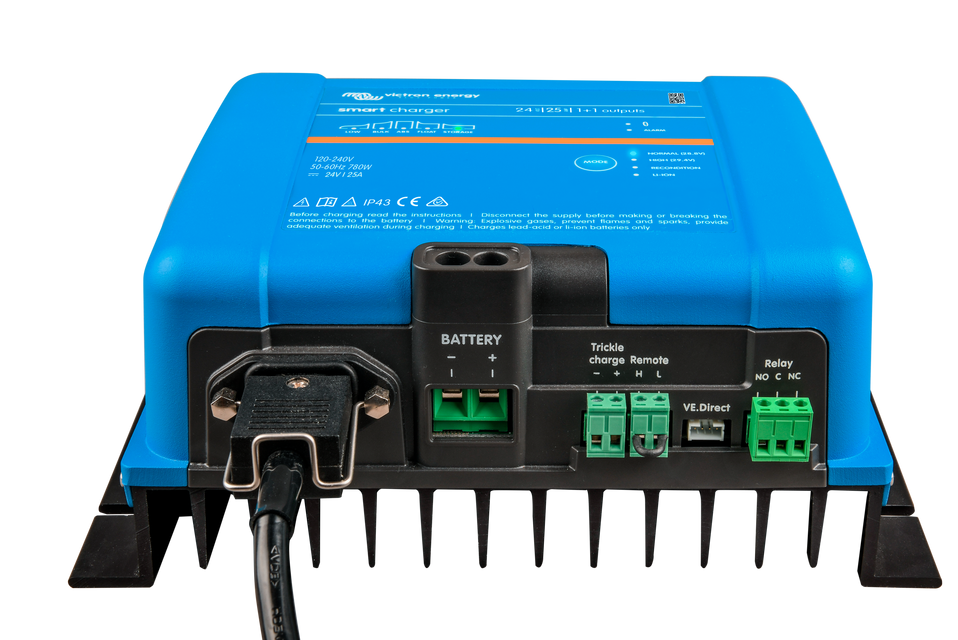

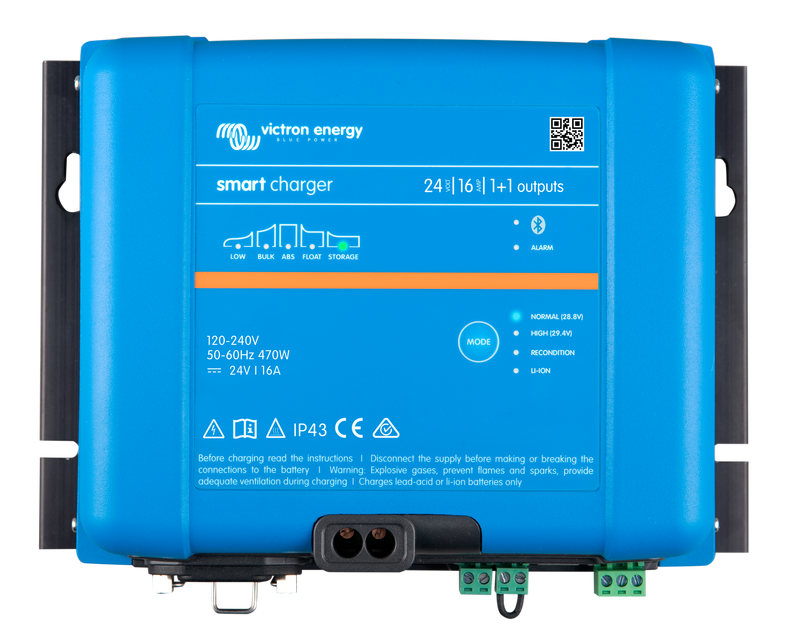

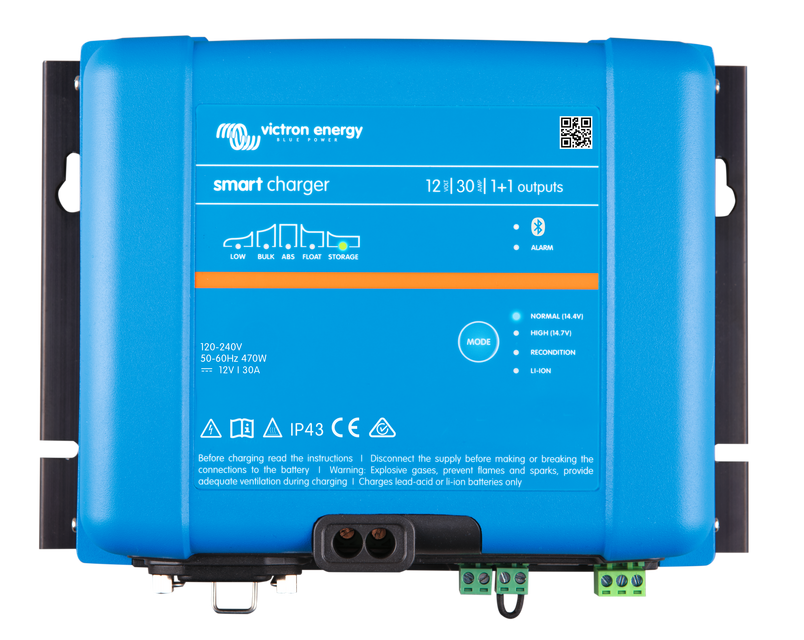

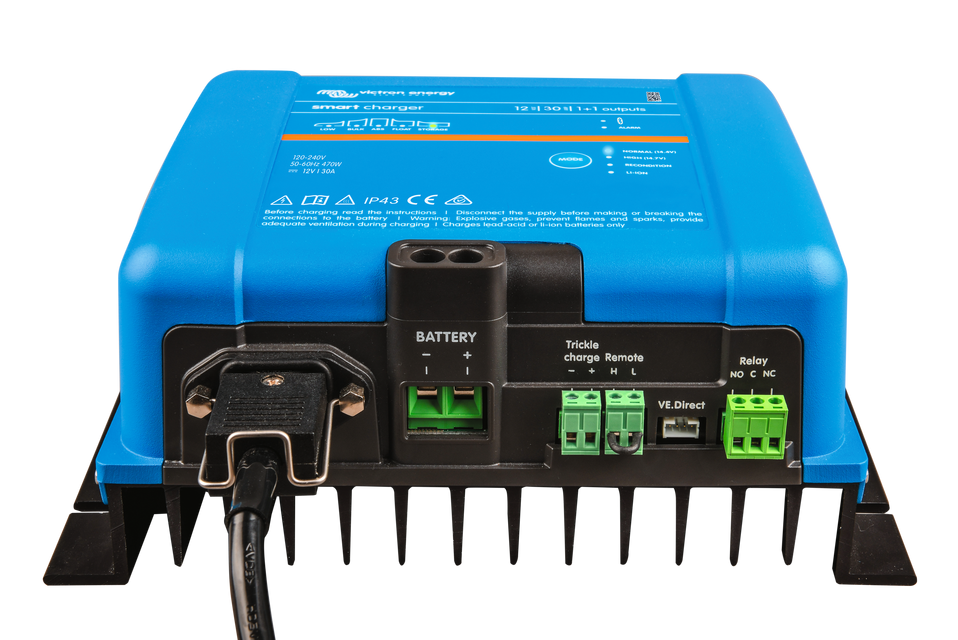

Phoenix Smart (1+1): Two Outputs for Two Battery Banks

To put it simply the Victron IP43 Charger has two outputs. The main output provides full charging power. The second output, limited to 4a with a slightly lower voltage, is perfect for topping up a starter battery.

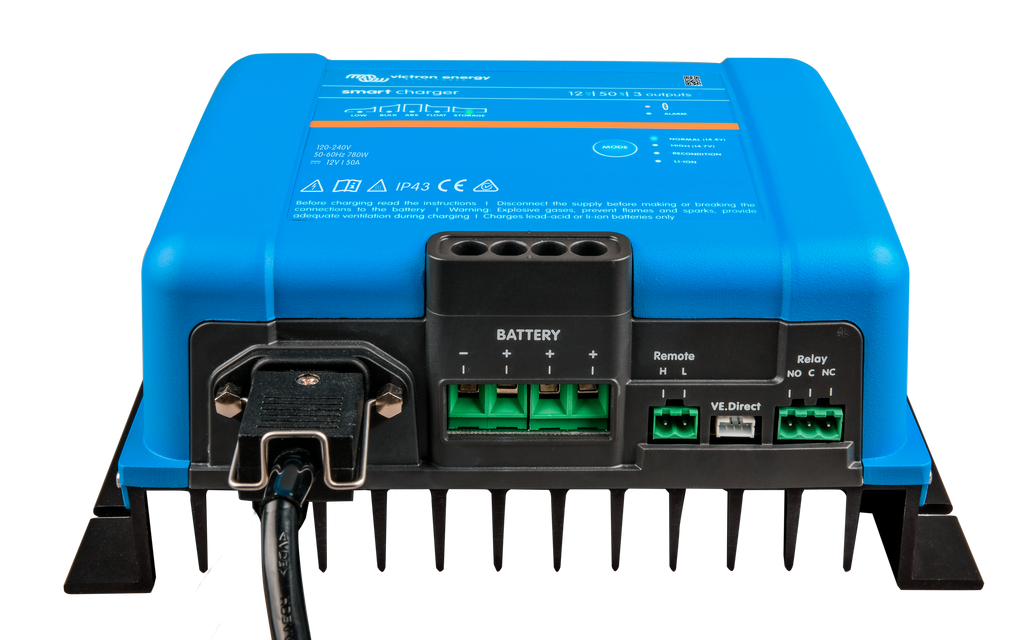

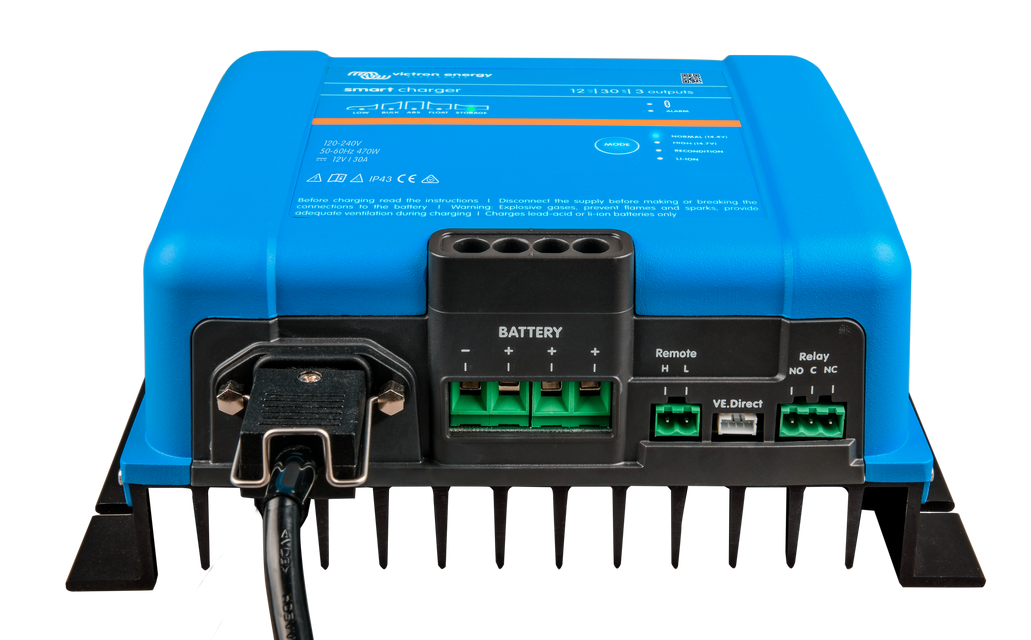

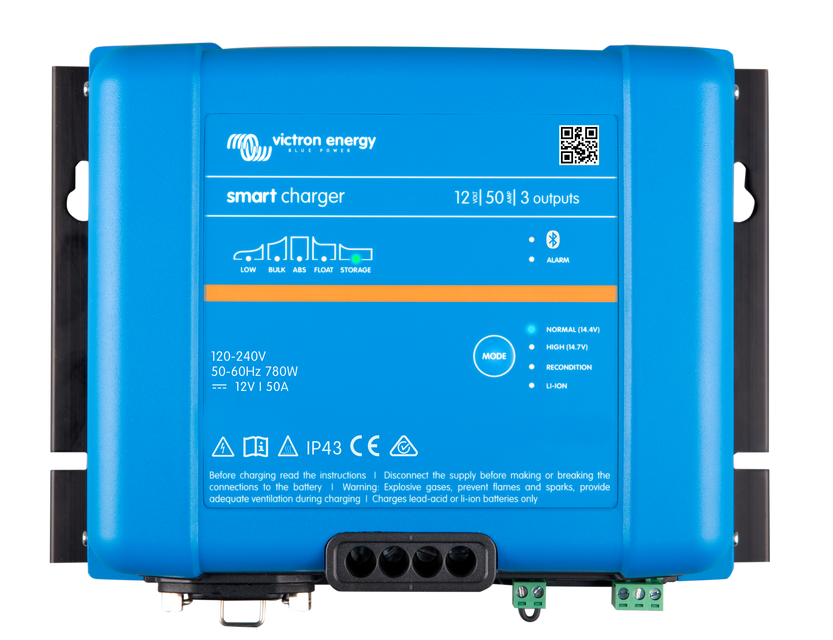

Phoenix Smart (3): Three Outputs for Three Battery Banks

In addition the Victron Energy IP43 Charger offers three full-current outputs. Each output can deliver the rated current, but the total combined current cannot exceed the charger’s maximum rating.

Automatic Voltage Compensation

In addition the Victron Phoenix Charger adjusts for voltage drops in the DC cabling. As current increases, the charger slightly raises output voltage to compensate. For detailed settings, refer to the manual.

Bluetooth Sensing for Smart Monitoring

Therefore you can use Smart Battery Sense or the BMV-712 Smart Battery Monitor for accurate voltage and temperature monitoring via Bluetooth.

Adaptive 6-Stage Charging Process

The charger features a 6-stage adaptive charging system:

• Bulk
• Absorption
• Recondition
• Float
• Storage
• Refresh

The Victron IP45 Charger automatically adjusts based on battery usage. This ensures optimal charging without overcharging or undercharging.

Variable Absorption Time for the Right Charge

If the battery is only lightly discharged, absorption time remains short to prevent overcharging. After a deep discharge, absorption time increases to ensure a full recharge.

BatterySafe Mode: Prevent Excessive Gassing

If a high charge current and high absorption voltage are selected, the charger limits the voltage increase once the gassing voltage is reached. This prevents damage from excessive gassing.

Storage Mode: Extends Battery Life

If no discharge happens for 24 hours, the Victron IP43 Charger lowers voltage to reduce gassing and corrosion. Once a week, it briefly increases voltage to prevent stratification and sulphation, common causes of battery failure.

Charges Li-ion (LiFePO₄) Batteries

The Victron IP43 Charger supports Li-ion batteries. It can be controlled via a relay, optocoupler, or Bluetooth for complete voltage and current management.

Fully Programmable Charge Algorithm

You can customize the charge algorithm using Bluetooth or the VE.Direct interface. Alternatively, select from three preprogrammed settings using the mode button.

Optional External Battery Voltage & Temperature Sensing Via Bluetooth

For better accuracy, connect a Smart Battery Sense or BMV-712 Smart Battery Monitor to relay battery data to one or more Victron Phoenix Smart IP43 Chargers.

Remote On-Off Control

The remote on/off consists of two terminals: Remote H and Remote L.
A remote on/off switch or relay contact can be connected between H and L.
Alternatively, terminal H can be pulled high, or terminal L can be pulled low.
See manual for details.

VE.Direct Interface for Wired Data Connection

Connect the Victron Charger to a Color Control panel, PC, or other devices using the VE.Direct interface.
Check the VictronConnect app under Downloads/Software for more details.

Programmable Relay for Custom Alerts

The built-in relay can be programmed via VE.Direct or Bluetooth. Use it to trigger alarms or automate events.

Synchronized Charging with Multiple Units

Pair two or more Phoenix Smart IP43 Chargers for synchronized charging. This ensures efficient power management across multiple battery banks.
It also improves the charge efficiency and battery life.

Why the Victron Pheonix Smart Charger IP43 is the winner

1. Firstly, the Victron IP43 Phoenix Smart Charger ensures reliable, intelligent charging for all lead-acid and lithium batteries.
2. Secondly, its advanced adaptive charging maximises battery health and extends overall battery life.
3. Moreover, the charger is ideal for marine, automotive, and industrial battery charging needs.
4. Additionally, it features built-in Bluetooth for easy monitoring and configuration via the VictronConnect app.
5. Importantly, the IP43 rating offers protection from splashes, dust, and light rain exposure.
6. Notably, its three full current outputs allow simultaneous charging of multiple battery banks.
7. In comparison, standard chargers lack the precision and smart features found in the IP43.
8. Furthermore, it offers full programmability for tailored charge profiles to match any battery type.
9. Consequently, users enjoy optimal performance, whether using AGM, Gel, or Lithium batteries.
10. Ultimately, the IP43 is trusted by professionals in demanding environments like yachts, campers, and workshops.
11. Equally, Victron’s high-quality components ensure durability and long-term performance.
12. Therefore, it’s a wise investment for anyone serious about battery maintenance and reliability.
13. Undoubtedly, the charger supports automatic power recovery after interruptions or disconnections.
14. Also, it can be easily integrated into larger Victron Energy systems for off-grid or mobile setups.
15. Finally, the Victron IP43 Phoenix Smart Charger is backed by a solid warranty and worldwide support network.

Why Victron Energy is the clear Winner

Firstly, Victron Energy is a global leader in power solutions for off-grid and mobile applications. Moreover, they specialise in solar, battery, and inverter systems. In addition, their products are trusted for reliability and cutting-edge performance.

Secondly, Victron offers a wide range of smart energy products for marine, automotive, and industrial use. Furthermore, their equipment integrates seamlessly for custom power setups. Notably, Bluetooth and app connectivity come as standard in many devices.

Finally, Victron is known for innovation, durability, and outstanding support. Consequently, professionals and enthusiasts choose Victron for dependable energy management. Ultimately, it’s a brand built for power confidence.
